Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable

MOQ: 1 set
Price: 220000 - 320000USD per set
Standard Packaging: After being wrapped with stretch film , it is shipped unpacked in the container.
Delivery Period: 15 - 25 working days
Payment Method: L/C,T/T
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
Qingdao,China
Brand Name
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.
Certification
ISO9001
Model Number
ZX - RQG
Purpose:
HDPE Gas/water Supply Pipe Extrusion Production
Note:
Different Models And Configurations Are Available For Customization
Highlight:

Gas Plastic Pipe Machine

,

Water Plastic Pipe Machine

,

water pipe making machine Customizable

Product Description
Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable
Product Attributes
Purpose HDPE gas/water supply pipe extrusion production
Note Different models and configurations are available for customization
Product Description
HDPE Gas Pipe / Water Pipe Plastic Pipe Machine Multiple Specifications Customizable

HDPE gas/water supply pipe extrusion production line saves 30% energy: optimizing screw structure+reverse slotting design of feeding section to ensure high production capacity while low-temperature melting of materials and uniform plasticization. The heating system of the extruder heats up quickly, and the main motor adopts a servo motor, which has the same extrusion volume and good energy-saving effect.

Core Advantages
  • Capable of producing two-layer, three-layer, multilayer composite pipes, or reinforced composite pipes through modular mold replacement and on-demand addition of single-screw extruders.
  • Mold Specification: Fabricated from 40Cr mold steel via quenched and tempered forging, with hard chromium plating for enhanced wear resistance, exceptional deformation resistance, and high dimensional precision.
  • The vacuum shaping box and spray box have stable vacuum degree, which can provide uniform cooling capacity around the pipe and meet sufficient cooling length of the pipe.
  • Special screw design, fast heating and warming up, main motor using servo motor, same extrusion volume, good energy-saving effect.
  • The HDPE gas/water supply pipe extrusion production line adopts the German INOEX brand gravity metering device, which has high accuracy in meter weight control and improves the quality of pipe materials.
  • A reasonable traction structure ensures that the pipe is always consistent with the traction center, making it convenient for users to adjust.
  • The end face of the pipe cut by the fully automatic chip free cutting machine is smooth, flat, noiseless, dust-free, low-energy consumption, avoiding waste and saving materials for users.
  • The Siemens PLC control system allows operating parameters to be freely defined and displayed on the screen.
Application Scope

The pipes produced by this line have significant performance advantages in terms of stiffness, flexibility, heat resistance, aging resistance, mechanical strength, creep resistance, corrosion resistance, and thermal connectivity. Widely used in urban water supply network systems, urban and rural drinking water pipelines, chemical/food/forestry/light industry/papermaking and other industrial material and liquid transportation pipelines, agricultural irrigation pipelines, postal and telecommunications lines, power line protection sleeves, mining mortar transportation pipelines, and postal and telecommunications lines.

Technical Specifications
Type Pipe Spec (mm) Extruder Max.Output (kg/h) Speed (m/min) Total Power (kw)
ZXPE-63 20-63 SJ50/33 120 0.2-16 65
ZXPE-110 20-110 SJ65/33 220 0.2-10 115
ZXPE-160 63-160 SJ75/33 300 0.3-6 160
ZXPE-250 75-250 SJ80/33 400 0.2-5 200
ZXPE-315 160-315 SJ90/33 550 0.2-2 250
ZXPE-630 315-630 SJ120/33 900 0.1-1 420
ZXPE-800 400-800 SJ135/33 1200 0.08-0.8 500
ZXPE-1200 630-1200 SJ150/33 1400 0.05-0.5 650
Product Images

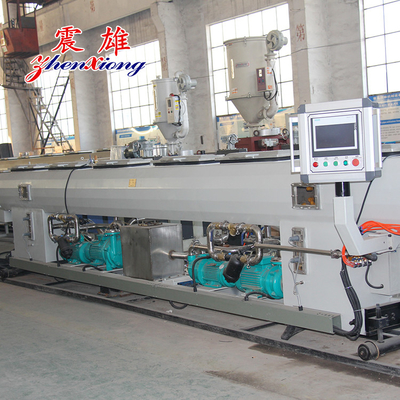

Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable 0 Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable 1 Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable 2 Gas Water Plastic Pipe Machine Water Pipe Making Machine Customizable 3
